WORKS CORSA Part Number: WRC-OPB-GR01

$65.00

Shipping calculated at checkout

Available: 5

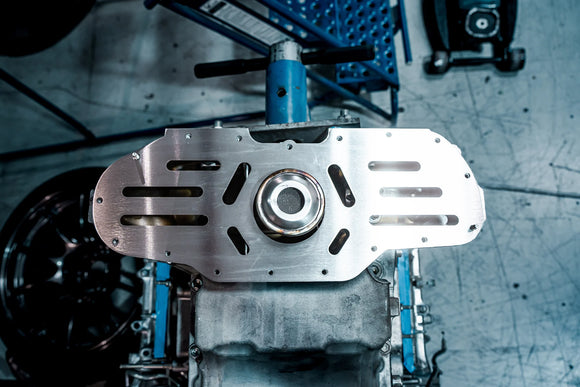

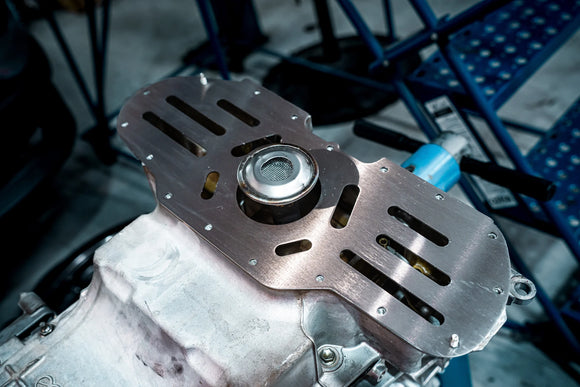

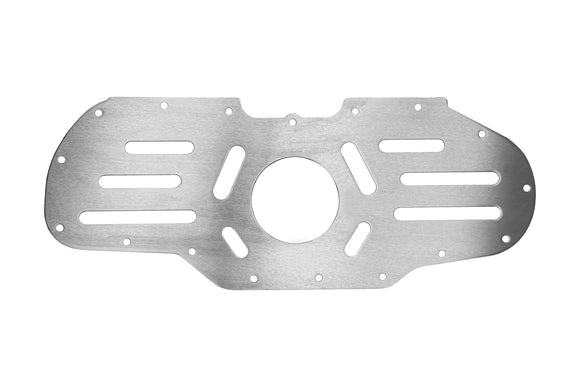

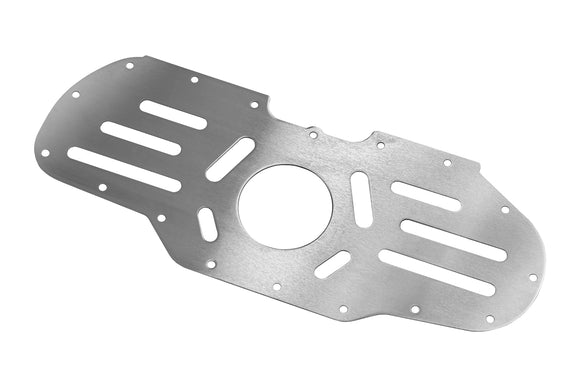

Works Corsa - 2GR-FSE (RWD) - Oil Pan Baffle Plate

The smooth waterfall design to the upper oil pan can cause sporadic oil drops while hard cornering and braking. This can lead to motor failure from our on racetrack experience. The baffle plate design helps with balancing out your oil pressure levels and reducing oil drop pressures by up to 10psi.

Part Number  WRC-OPB-GR01
Application  - Lexus IS350 (2006~2020) ** Please Check engine Type **
- Lexus IS350C (2010~2015)
- Lexus GS350 (2007~2011)
- Lexus GS350 (2013~2015)
- Lexus RC350 (2015~2017) ** Please Check engine Type **
Engine 2GR-FSE
Drivetrain RWD (Does not fit AWD)
Material Stainless Steel
Notes Does not fit:
- 2GR-FE (Port Injection)
- 2GR-FKS (Newer D-4S with Atkinson-Cycle)
- 2GR-FXE (Hybrid models)
Installation Tips Uses existing oil pan hardware for install.
Recommend using TOYOTA Seal Packing 103 (FIPG) for oil pan install.
** Apply on top and Bottom **

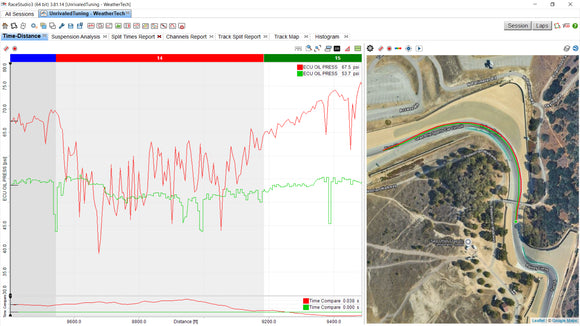

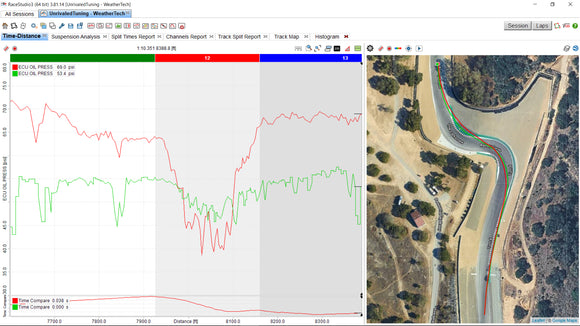

Reference graph photos shows two examples. In RED we have a low mileage 2GR (sub 30k miles) and in GREEN we have a high mileage 2GR from a salvage yard with baffle plate. The RED motor has better static oil pressure with it being a low mileage motor, but has sporadic oil pressure drops while hard cornering. The GREEN motor has more consistent oil pressure levels in the same corners. Does not drop oil pressure as low as the RED 2GR motor.
