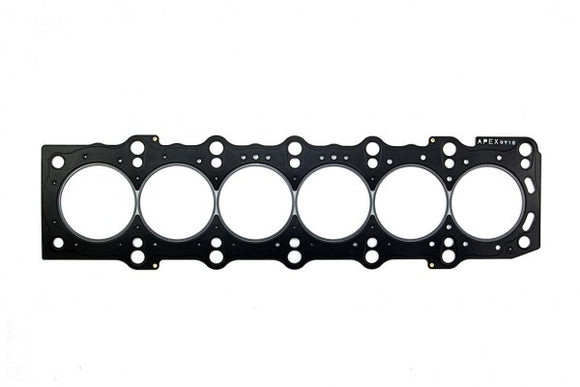

APEXi Engine Metal Head Gasket Toyota 2JZGTE (JZA80, JZS147, JZS161), 87mm

APEXi SKU: 814-T101

$349.00

Shipping calculated at checkout

Size: T-1.1
T-1.1
T-1.5
T-1.8
T-2.1

Only 1 left!

The A'PEXi metal headgaskets provide upgraded protection on high horsepower engines. Factory headgaskets cannot withstand the pressures of high output operation and often cause the engine to "blow." This condition is actually caused by a failure in the factory headgasket. A'PEXi recommends replacing the factory headgasket with a metal one before gasket failure causes more damage to the engine. The gaskets are all designed engine specific and provide a complete and secure seal.

Bolt-On Yes
Part Number

814-T101 : T=1.1

814-T102 : T=1.5

814-T103 : T=1.8

814-T104 : T=2.1

Engine 2JZ-GTE
Chassis JZA80, JZS147, JZS161
Gasket Type Stopper Type
Gasket Bore 87mm
Engine Bore Size (mm) 86mm (factory)
Gasket Thickness (mm)

T=1.1mm

T=1.5mm

T=1.8mm

T=2.1mm

Compression (Factory Head Gasket) 8.5
Compression (A'PEXi Head Gasket)

814-T101 : 8.8

814-T102 : 8.5

814-T103 : 8.3

814-T104 : 8.1
